What Thermal Imaging Can Reveal About Your Electrical System

Something doesn’t feel right....

Maybe everything seems fine, the lights work, the outlets work, but someone says there’s heat building up in your electrical system. You can’t see it or feel it, but now you’re wondering what’s really going on behind the walls.

At Integra Electrical, we hear this from homeowners every day. That’s why we use thermal imaging, one of the fastest and safest ways to check for hidden electrical issues without tearing anything open. Think of it like a heat-sensitive camera that shows us which parts of your system are working too hard or running too hot. It’s kind of like taking your home’s electrical temperature.

And no, it’s not just for big problems or older homes. Even something as simple as a loose wire in a new build can generate heat, putting your system at risk for failure or even fire. Thermal imaging helps us catch those warning signs early, before a minor issue becomes an expensive or dangerous one.

Before the end of this article, you will know:

• What thermal imaging is (and what it’s not)
• The most common signs of electrical trouble it can reveal
• Why electricians use it during a home inspection
• How to know when it’s time to have your home checked

What Is Thermal Imaging?

Thermal imaging is a tool electricians use to “see heat.” It works by detecting temperature differences across surfaces, which is exactly what we’re looking for when inspecting wires, outlets, breaker panels, and other parts of your electrical system.

If something’s running hotter than it should, even slightly, that can signal a loose connection, an overloaded circuit, or a faulty breaker. The scan itself doesn’t fix anything. It just shows us where to look closely.

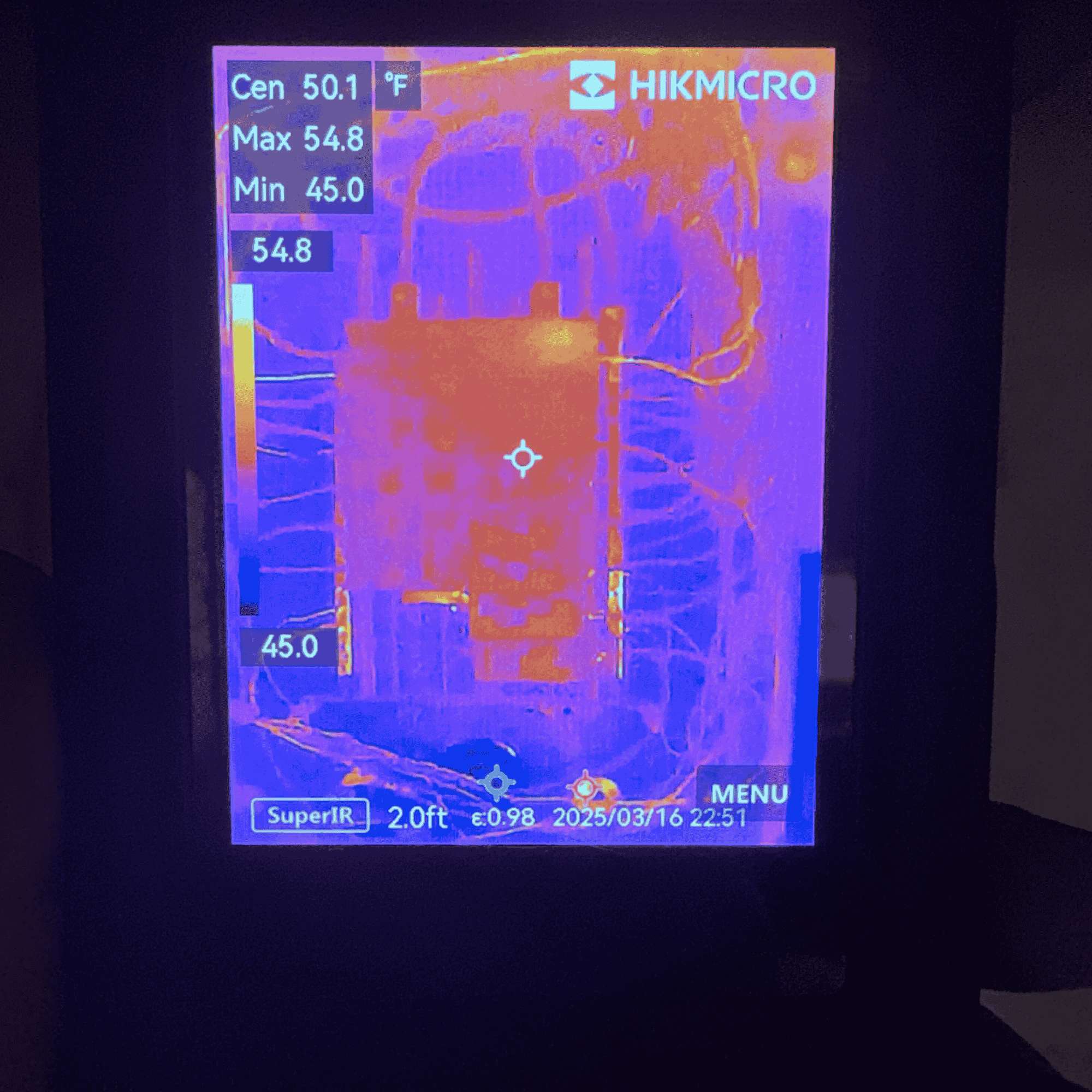

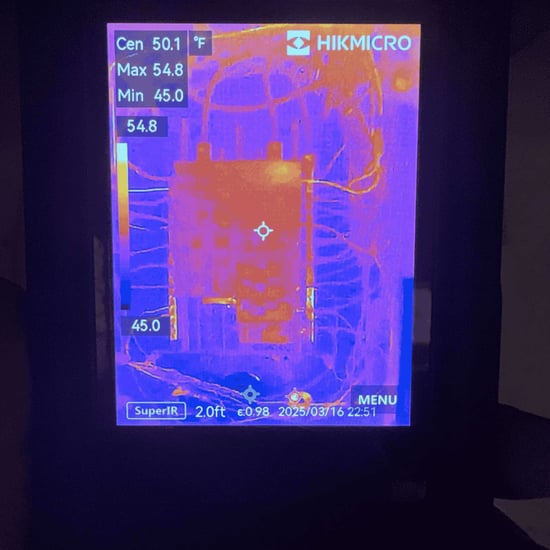

You’ve probably seen those color-coded images before; blue means cool, red means hot. In a way, thermal imaging works like a thermometer for your electrical system. It shows us if something is running hotter than it should be, which can signal a deeper issue, like a loose wire or overloaded circuit.  Just like a thermometer helps you catch a fever before it turns into something worse, a thermal scan can catch your home’s electrical “fever” early, before it leads to bigger problems.

In fact, many issues that would normally go unnoticed during a visual check stand out immediately under thermal imaging. It’s fast, accurate, and incredibly helpful, especially in older homes or homes where something just feels off but you can't quite explain why.

What Thermal Imaging Can Reveal

Even when everything looks fine on the outside, heat can tell a different story. Thermal imaging helps us spot the kinds of problems that usually stay hidden until they cause damage.
Here are a few of the most common issues we uncover with a thermal scan:

• Overheating wires: When a wire is carrying more power than it should, or if it’s damaged, it starts to heat up. Left unchecked, that heat can wear down insulation and create a serious fire hazard.

• Loose connections: A slightly loose wire inside an outlet or switch might not seem like a big deal, but it creates resistance. These connections can be caused by lots of different factors, such as WAGOS.  And resistance generates heat. Over time, this can burn up the connection or the device it’s wired to.
• Overloaded circuits: Plugging too many high-draw appliances into the same circuit can cause it to overheat. Sometimes you’ll notice this because your breaker keeps tripping, but other times, the only sign is heat building up behind the wall.
• Faulty breakers or panels: Breakers that don’t trip when they should, or panels with poor grounding, can also give off heat, even when they look fine from the outside. Thermal imaging helps confirm if something deeper is going on.


When we spot a hot spot, we dig deeper to figure out why it’s happening. Heat is just the clue; the real fix comes after we find the root of the issue.

Why We Use Thermal Imaging in Electrical Evaluations

Thermal imaging is a standard part of the evaluations electricians perform in homes every day. It’s not a flashy add-on; it’s one of the most practical tools we have for uncovering hidden issues safely and efficiently.

Thermal scans are fast, non-invasive, and incredibly telling. They help us confirm suspicions, spot invisible problems, and avoid making assumptions that could lead to unnecessary repairs. It’s like flipping on a light in a dark room; we’re not guessing anymore.

And because we specialize in diagnosing older homes throughout central Iowa, we rely on thermal imaging to guide our decisions, not just our eyes. That’s especially important in homes where the wiring is original, patched together, or buried behind walls that haven’t been opened in decades.

During every home evaluation, our licensed electricians walk through the property, check your panel, test devices, and look for anything that seems off. If something needs a closer look, a thermal scan gives us quick clarity, without cutting, prying, or creating more disruption than needed.

It’s just one part of our process. But in many cases, it’s the reason we’re able to catch a problem before it becomes a crisis.

Why Thermal Imaging Matters

Thermal imaging isn’t a magic wand; it’s more like a stethoscope for your home’s electrical system. It helps us listen for problems we can’t see, but it’s just one step in the process.

When we find something running hotter than it should, that doesn’t mean we immediately start replacing wires or panels. It means we slow down, ask questions, and run deeper diagnostics to understand why the heat is happening.

This is why doing a whole home evaluation is important. A licensed electrician checks the panel, tests voltage at the outlets, and examines your system as a whole before making any recommendations. It’s the same approach you’d expect at a doctor’s office. Just as doctors run a few basic tests before treating your body, we run tests to understand your home’s electrical health.

Because the goal isn’t just to fix what’s hot, it’s to determine why and ensure the entire system is safe, stable, and built to last.

Frequently Asked Questions

Is thermal imaging safe for my home?

Yes. It’s completely non-invasive. We don’t cut into walls or touch live wires; we simply use a handheld camera to detect heat coming off surfaces like outlets, breakers, and wiring.

Do I need to turn off the power first?

Nope! Thermal scans are most useful when your system is under normal load. We want to see how it behaves while it’s in use.

Can it detect problems behind walls?

To a degree, yes. It can’t see through walls, but it can detect abnormal heat patterns on the surface. That helps us spot hidden issues like overheating wires or overloaded circuits tucked behind drywall.

Is this something every electrician offers?

Not always. Many electricians still rely only on visual checks. At Integra, we include thermal imaging in our diagnostic process whenever needed, especially in homes where symptoms aren’t obvious.

How much does a thermal scan cost?

In many cases, we include it as part of a full home evaluation. If you’re curious about what an inspection or repair might cost in your area, you can always explore our free electrical price guide to get a sense of real, local pricing.
