Most homeowners don’t know what a double-tapped breaker is until someone points it out. It’s not a term you often hear, and it’s not something you’d likely notice on your own. Maybe it came up during a home inspection, or a contractor mentioned it in passing. But once it’s brought up, the questions start: Is this dangerous? How did it happen? Do I need to fix it now, or at all?
At Integra Electrical, we’ve inspected thousands of panels across Iowa, and double-tapped breakers are one of the most common issues we find, especially in homes that have seen electrical updates over the years. They’re easy to miss, but they matter more than most people realize.
Before the end of this article, you’ll be able to:
- Identify what a double-tapped breaker is and how it happens
- Understand why it's a problem and what risks it can create
- Know what to expect when it comes to getting it corrected safely
What is a Double-Tapped Breaker?
Inside your electrical panel, you’ll see a row of switches. Those are breakers. Each one controls the power to a certain part of your home, like your kitchen, living room, or furnace. If too much electricity flows through a circuit, the breaker shuts off to protect your wiring. It’s like a safety switch that keeps things from overheating or causing damage.
Now think of your panel like a puzzle. Each breaker has one spot where a wire is meant to fit, just like one puzzle piece goes into one space.

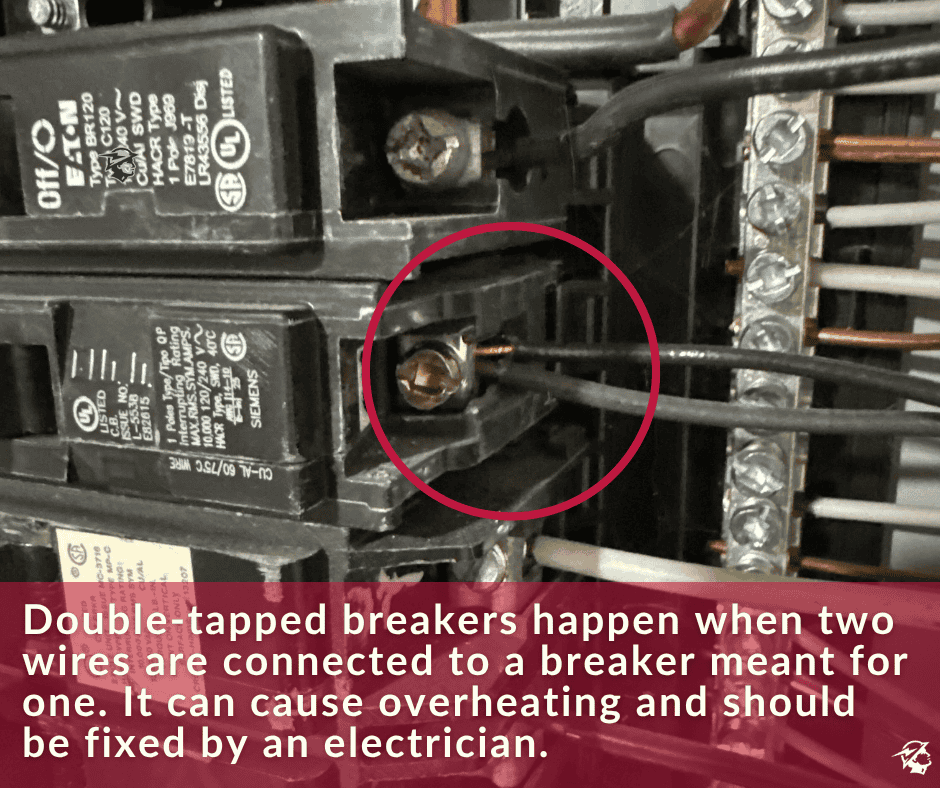

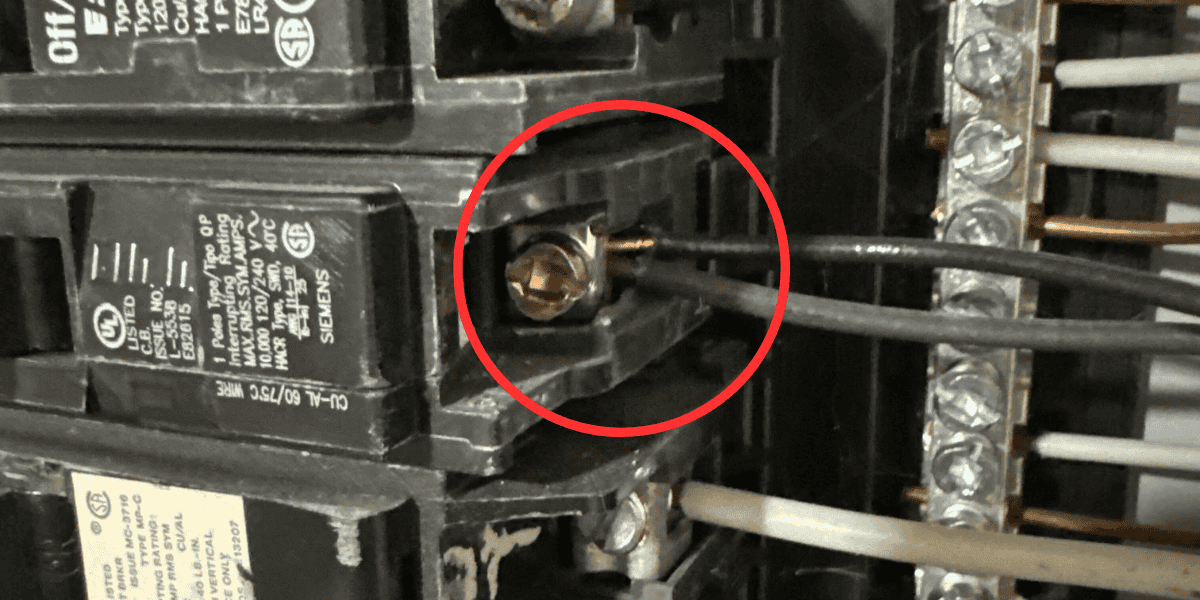

A double-tapped breaker happens when someone tries to squeeze two wires into a breaker made only for one. It’s like jamming two puzzle pieces into the same space. It might sort of fit, but it’s not secure, and it’s not how the system was meant to work.
This usually happens when someone adds a new outlet, light, or circuit, and instead of installing a new breaker, they take a shortcut and double up on an existing one.
At first, it might seem like no big deal. But over time, one of the wires can start to come loose. When that happens, electricity can jump between the wire and the breaker. That jump is called arcing, and it’s like a tiny lightning bolt inside your panel. It creates heat, can burn the wire, and in some cases, can lead to a fire if it’s not caught and corrected.
.png?width=940&height=788&name=DoubleTappedBreakers%20(1).png)
Why Double-Tapped Breakers are a Problem
A double-tapped breaker might not cause issues right away, but it’s still an Iowa code violation for a reason.
Breakers are built to hold one wire securely. When two wires are squeezed into one connection, they don’t always stay tight. Over time, one can start to wiggle loose. And when that happens, the connection becomes unstable.
An unstable connection doesn’t just stop working; it can start to overheat. It might spark. And in some cases, it can lead to arcing, where electricity jumps through the air like a tiny lightning bolt. That’s where real damage can start, and it’s one of the ways electrical fires begin.
The other issue is that double taps often go unnoticed. You usually can’t see them without opening the panel. So even if everything seems fine, your system could be quietly working against you without warning.
That’s why the electrical code says each breaker should only hold one wire, unless it’s specifically designed for two, like some Square D models (and most aren’t).
Fixing a double-tap now is simple. Waiting until there’s heat damage or a failure? That’s when it gets expensive, or dangerous.
How to Tell if You Have a Double-Tapped Breaker
Most of the time, you won’t know if you have a double-tapped breaker just by looking around your house. Everything might seem to be working fine, the lights are on, the outlets work, and there are no signs of trouble. That’s what makes it so easy to miss.
The only way to spot a double tap is by opening the electrical panel and checking how the wires are connected to each breaker. And unless a breaker is clearly labeled for two wires, which is rare, having more than one wire connected is a red flag.
It's best practice to have an electrical professional open the panel because the parts inside are still live with electricity, even when the cover is off. That’s why this kind of check is usually done during a professional panel inspection to get the box cleaned up, connections checked, and small issues—like double taps—identified before they become bigger & more expensive problems.
How Double-Tapped Breakers Get Fixed
Fixing a double-tapped breaker is usually a quick, straightforward job for a licensed electrician. It doesn’t mean you need a whole new panel; just a better way to connect the wires.
Depending on the situation, the electrician might add a new breaker so each wire has its place. Or they might safely group the wires before attaching them, so everything stays tight and secure the way it should be. The goal is to make sure the connections inside your panel are clean, safe, and built to last.
It might seem like a small fix, but it helps your electrical system do its job: protecting your home from overheating, sparks, or fire. When a breaker isn’t wired properly, that layer of protection starts to break down.
Getting it corrected now helps prevent problems later, and gives you peace of mind knowing your panel is working the way it was meant to.
If you're unsure what’s going on inside your panel, there’s no pressure to guess or to make a decision without good information.
A free breaker panel tune-up gives you a chance to get your panel cleaned up and checked over. We’ll tighten any loose connections, clear out dust and buildup, and identify issues like double-tapped breakers or early signs of trouble. Even if you don’t move forward with any repairs, you’ll walk away with a clearer understanding of what’s going on and what can wait.
It’s a simple way to take care of your home and make informed choices with confidence.
